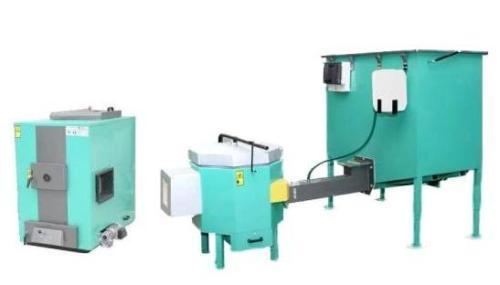

The AZSB Set comprises of a 50 kW boiler and a stoker APSB SMOK with ceramic burner.
APSB Smok with ceramic burner is a modern appliance designed for burning fuels of the humidity between 25 - 40%:
- wood,
- wood chips,
- shavings,
- peat,
- pellets,
- cherry drupels,
- tree bark.
|
Technical parameters |
Unit |
Value |
|
| Dimensions of the combustion chamber |
Width (A) |
mm | 588 |
|
Depth (B) |
mm | 435 | |
|
Height (C) |
mm | 720 | |
|
Volume of the combustion chamber |
dm3 |
184 |
|
|
Nominal heating power |
kW |
50 |
|
| Efficiency | % | 84 | |
|
Water capacity |
l |
190 |
|
|
Weight |
kg |
1086 |
|
|
Volume of the fuel chopper |
m3 |
1 |
|
| Water working temperature | oC | 70-80 | |
| Min. return temperature | oC | 55 | |
|
Max. water pressure |
bar |
1,5 |
|
| Dimensions of the exhaust gas pipe |
mm x mm |
200 x 200 |
|
| Chimney height | m | 8-10 | |
| Min. chimney section / diameter | cm2 / Ø mm | 400 / 180 | |
| Power supply - three phase | V | 400 | |
